果蔬清洗漂燙加工線

Washing and blanching processing line for fruits and vegetables

果蔬清洗漂燙加工線可以用于青菜，大白菜，葉菜等蔬菜的清洗，漂燙，冷卻，脫水加工。

The processing line can be used for cleaning, blanching, cooling and dewatering vegetables such as green vegetables, Chinese cabbage and leaf vegetables.

1、工藝流程：

Process flow:

以高壓風機風力或水泵的壓力使水產生攪拌運動，使物料在水中翻滾，從而達到清洗果蔬效果，適用于中小規格果蔬的清洗(與水果外形無關)，節水效果好。

Use the pressure of high pressure blower or water pump to make the water stirring movement, make the material roll in the water, so as to achieve the effect of cleaning fruits and vegetables, suitable for the cleaning of fruits and vegetables of small and medium-sized specifications (has nothing to do with the appearance of fruits and vegetables), good water-saving effect.

2、工作原理：

Working principle:

該機由機架、水箱、風機(水泵)、提升機、循環沖洗水泵、傳動部分等幾部分組成，工作時由于水中風力(壓力)的存在，果蔬在水中劇烈翻滾攪動，清洗水經過過濾后，由循環沖洗泵加壓至進料口噴管回沖，噴管方向可調，物料被噴管?chē)姵龅母邏核靡栽俅螞_洗，并朝著出口方向漂移，出口處置至刮板提升機，刮板提升機的速度可調(調節刮板提升機速度到所需的生產能力)，將沖來的果蔬送至下道工序(可根據用戶要求在出口刮板提升機上加噴淋管，進一步進行噴洗)。也可根據用戶不同的物料，加工不同的提升結構。

This machine consists of frame, water tank, fan (pump), hoist, circulation pumps, transmission parts and so on several parts, while working as a result of the existence of water wind (pressure), fruit and vegetable violently stirring in water, clean water after filtration, the circulation pump pressure to the inlet nozzle rushed back, adjustable nozzle direction, the material being nozzle jet of high pressure water to rinse again, and drift in the direction of exports, export disposal to scraper hoist, scraper hoist speed adjustable (adjust the scraper hoist speed to the required production capacity). Send the washed fruits and vegetables to the next process (spray pipe can be added to the export scraper hoist according to the user's requirements for further spraying and washing). Also according to the user's different materials, processing different lifting structure.

3、特點：

Features:

蔬菜表面的泥沙會脫落，沉淀到底部隔離倉，防止了翻揚回流。而從蔬菜上洗落下來的雜物和小蟲會漂浮在水面，然后被網孔收集，溢出水槽的水流被排除水箱，進入尼龍袋中。蔬菜被蔬菜清洗機洗干凈后，再經過噴淋的清洗，然后通過傳送帶送出，傳送帶末端有一個吹起裝置，沒有被清理掉的雜物吹落。

The sediment on the surface of the vegetables will fall off, the sediment to the bottom of the isolation bin, preventing the reverse flow. Debris and insects washed off the vegetables float on the surface of the water, where they are collected in the mesh, and the water flowing out of the tank is drained into the nylon bag. The vegetables are washed by the vegetable washing machine, then washed by spraying, and then sent out through the conveyor belt. There is a blowing device at the end of the conveyor belt, and the debris that has not been cleaned off is blown off.

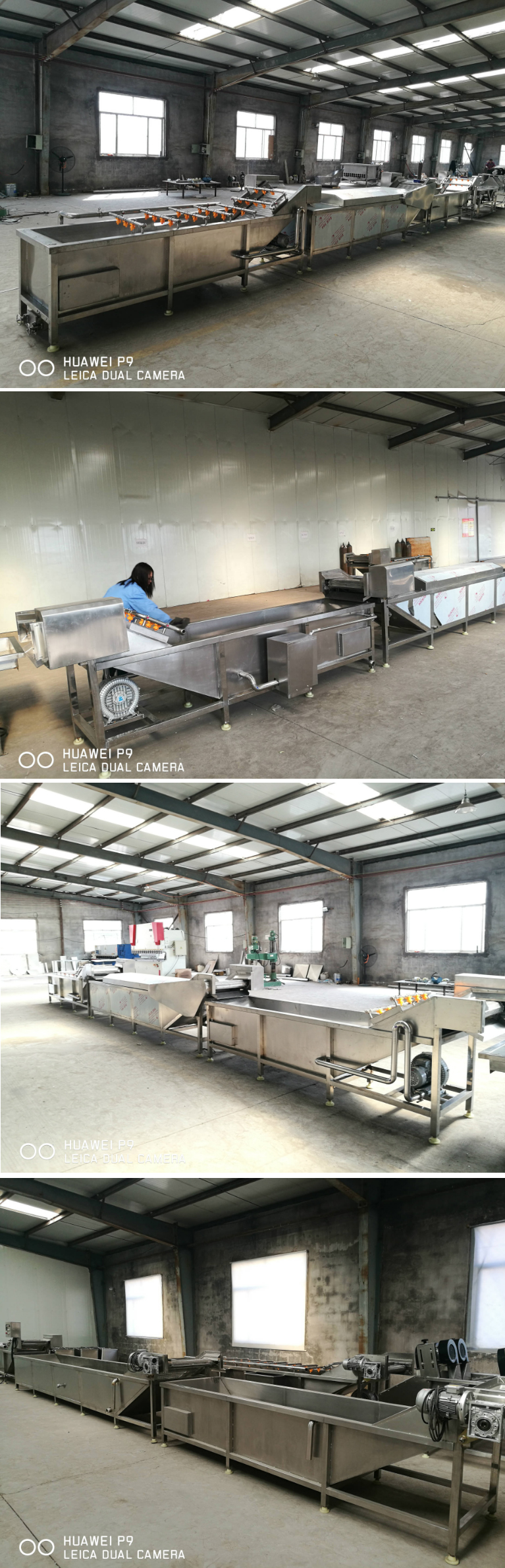

產品展示如下：

The product is displayed as follows:
